Feed mill plant trailer, mobile, new, MILLING / MIXING SYSTEM GMA 4000
Features at a glance:

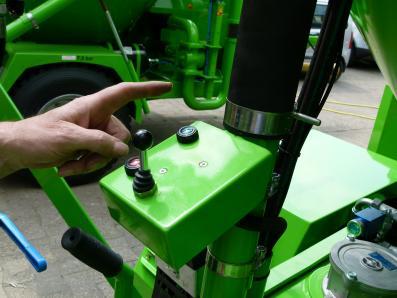

- Central one-handed operation from the rear Mixing computer for 99 different mixes with 99 components each Liquid component container.
- Solid component container made from stainless steel for bagged goods.
- Check valve to secure blower.
- Filter system with 12 cartridges.

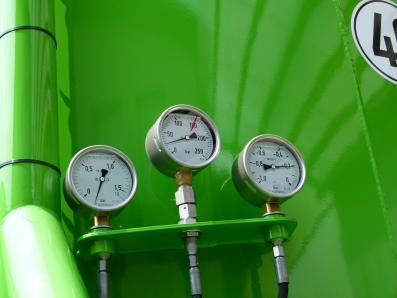

- Cleaning is done using pneumatic valves. Vacuum and pressure manometer.
- Hammer mill with 72 fittedhammers with screen frame for wire sieves in 10 different sizes (380 mm wide / diameter: 800 mm).
- Main drive via 8 v-belts for tractors with 1000er power take-off. Vertical positive mixer with 400 mm worm gear.
- Magnet in inlet system to discharge metal particle
Technical data: - Mixing container: 4000 kg content with hydraulic motor drive, supported on 4 weighing devices. - Performance: 10 t/h at 160 PS. - Wheat - 250kg/min. - Blower performance: 25 m³/min. - Length/Width/Height: 5000x2400x3280 Weight - 4,4 t. - Customs tariff number 84388099. - Warranty valid for 1 year from date of purchase

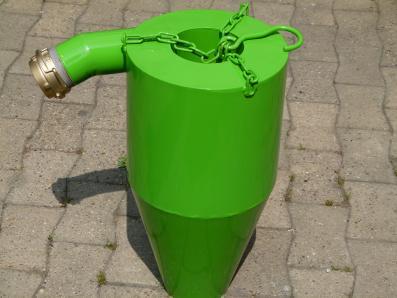

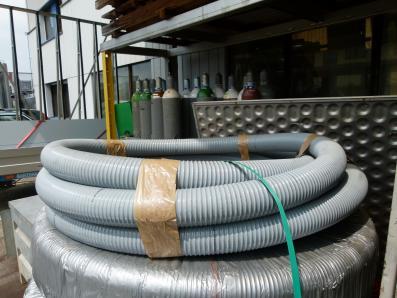

Option (The option price can be purchased plus auction price for a fixed price): The charging device for direct filling – 3900,00 eur. Blow out cyclone – 500,00 eur. Suction pressure hose 80 х 6.00 mm copper wire – 21,50 eur. Level indicator with lamp and horn – 330,00 eur. Flowcounter with hose and lance - 550 eur. Working lights – 270 eur. Delivery and first start -1000,00 eur within Germany. DELIVERY WITHIN 6-7 WEEKS.
